LCD750-00-6
CONN TERM RECT TONG 750 MCMManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

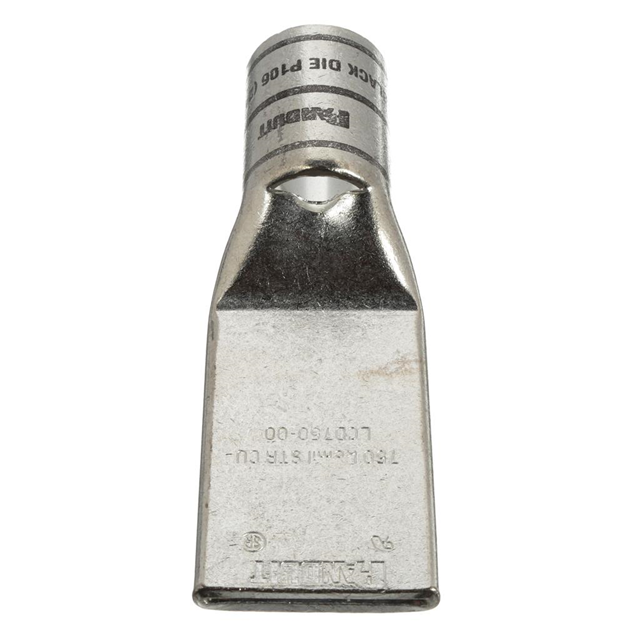

Panduit Corp Pan-Lug™ LCD750-00-6 is a non-insulated, rectangular tongue terminal connector designed for high-capacity power applications. This component accommodates 750MCM (kcmil) wire gauge and features a direct crimp termination to a barrel. The overall length is 5.650 inches (143.51mm) with a tab thickness of 0.260 inches (6.60mm) and an outer edge width of 1.890 inches (48.01mm). Its free hanging (in-line) mounting type allows for flexible installation. The Panduit Corp Part Number LCD750-00-6 is suitable for industrial and heavy-duty power distribution systems, electrical infrastructure, and large-scale energy projects requiring robust and reliable connections. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 750MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 5.650"" (143.51mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | No Stud Hole |
