LCD600-38D-6
CONN TERM RECT TONG 600 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

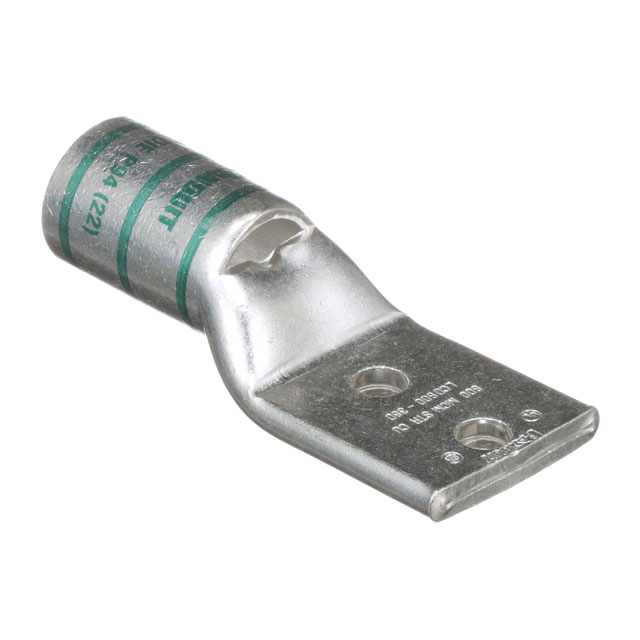

Panduit Corp Pan-Lug™ LCD600-38D-6 is a non-insulated, rectangular tongue terminal designed for high-power applications. This crimp-style lug features a two-stud hole configuration with a 3/8 stud size and a tab thickness of 0.260 inches. Engineered for 600 MCM (kcmil) wire gauge, it offers a robust barrel termination for reliable electrical connections. The overall length is 4.240 inches, with an outer width of 1.700 inches. This component is suitable for in-line mounting in industrial power distribution, heavy machinery, and electrical infrastructure sectors where dependable termination of large conductors is critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 600MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 4.240"" (107.70mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.700"" (43.18mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Two Stud Holes |
