LCD6-38DF-L
CONN TERM RECT TONG 6 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

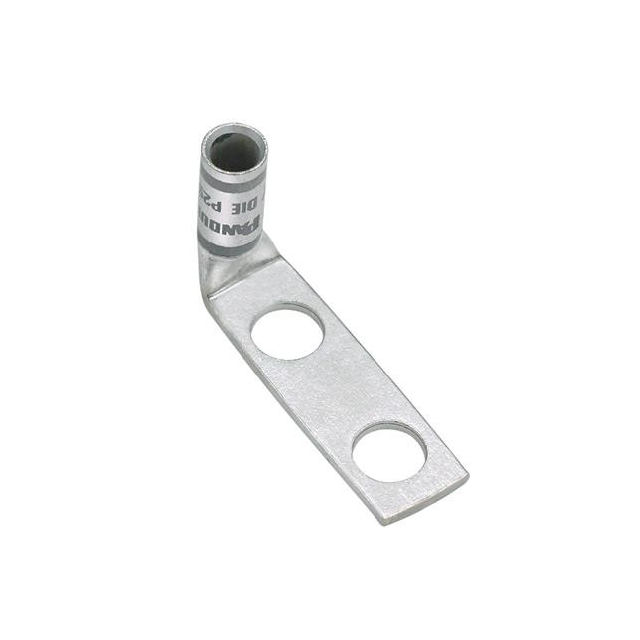

Panduit Corp Pan-Lug™ LCD6-38DF-L is a non-insulated, rectangular tongue terminal connector designed for 6 AWG wire. This component features a robust construction with a 0.060" (1.52mm) tab thickness and a 3/8" stud size, accommodating two stud holes for secure termination. The connector's barrel is engineered for reliable crimp termination. Its overall width is 0.620" (15.75mm). The Panduit Corp Pan-Lug™ LCD6-38DF-L is suitable for heavy-duty electrical applications across industries such as power distribution, industrial automation, and renewable energy. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.060"" (1.52mm) |
| Terminal Style | Two Stud Holes |
