LCD6-14J-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

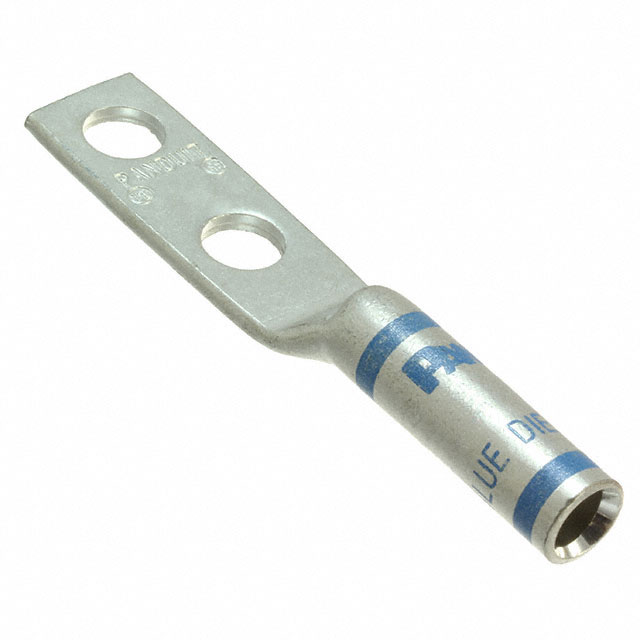

Panduit Corp Pan-Lug™ Terminal Connector, part number LCD6-14J-L, is a non-insulated, rectangular tongue terminal designed for 6 AWG wire. This component features a dual stud configuration with a 1/4 stud size and a tab thickness of 0.080 inches. The overall length is 2.110 inches with an outer width of 0.480 inches. Termination is achieved via a Crimp barrel. This part is suitable for industrial automation, power distribution, and renewable energy applications where robust and reliable electrical connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.110"" (53.59mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
