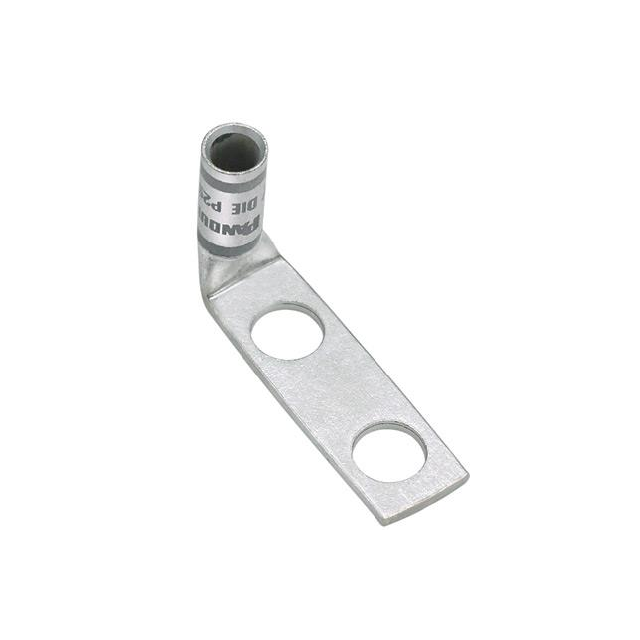

LCD6-14DF-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCD6-14DF-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component utilizes a two-stud configuration with a 1/4 stud size and a tab thickness of 0.080 inches (2.03mm). The terminal type is a rectangular tongue, suitable for crimp barrel termination of 6 AWG wire. Its overall width across the outer edges is 0.480 inches (12.19mm). The mounting type supports both free hanging (in-line) and right-angle configurations. This Panduit Corp terminal is commonly employed in industrial automation, power distribution, and motor control applications where reliable and secure wire termination is critical. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
