LCD6-10BH-L
CONN TERM RECT TONG 6 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

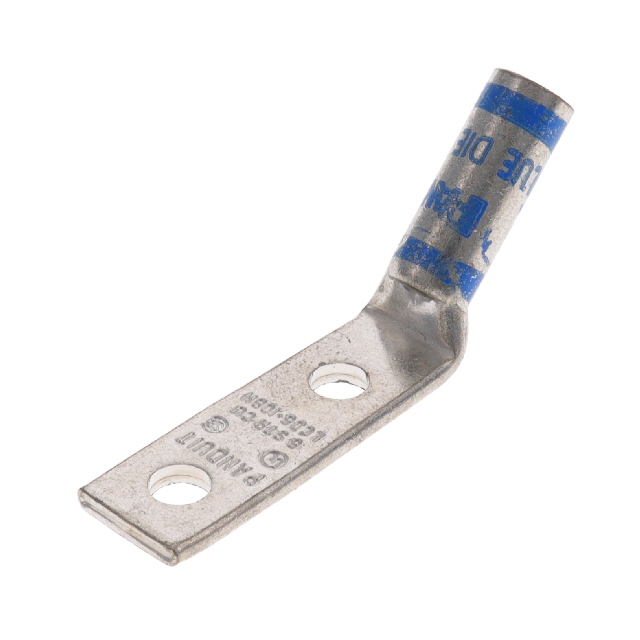

Panduit Corp Pan-Lug™ LCD6-10BH-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component utilizes a two-stud hole configuration, accommodating a #10 stud size and a wire gauge of 6 AWG. The termination method is crimp, with a barrel design for secure wire attachment. Featuring a tab thickness of 0.080" (2.03mm) and an outer edge width of 0.460" (11.68mm), this terminal is suitable for free-hanging (in-line) or 45° angle mounting applications. The Panduit Corp Pan-Lug™ series is widely utilized in industrial power distribution, renewable energy systems, and heavy equipment manufacturing where reliable and durable electrical terminations are critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
