LCD500-38D-6
CONN TERM RECT TONG 500 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

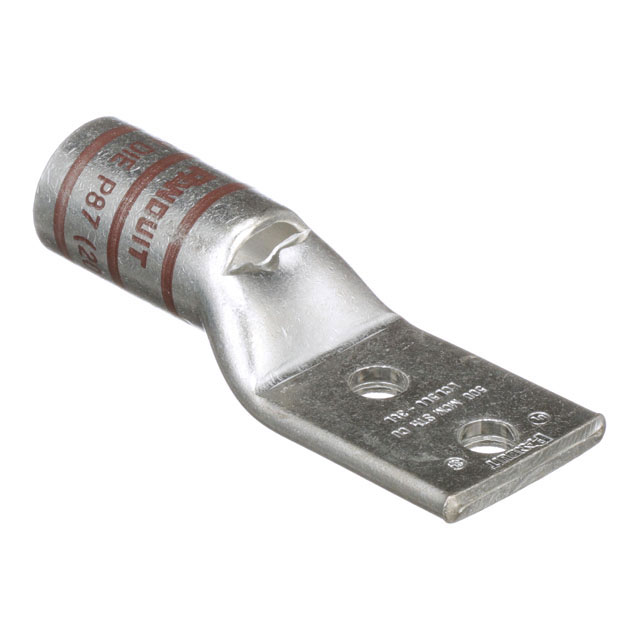

Panduit Corp Pan-Lug™ LCD500-38D-6 is a non-insulated, rectangular tongue terminal connector designed for high-current applications. This component accommodates 500 MCM (kcmil) wire gauge and features a 3/8 stud size for secure mounting. The terminal style includes two stud holes, with a tab thickness of 0.220 inches (5.59mm) and an overall length of 4.190 inches (106.43mm). Its outer width is 1.540 inches (39.12mm). The termination method is crimp barrel. This component is commonly utilized in power distribution, industrial automation, and heavy electrical equipment sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 4.190"" (106.43mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
