LCD500-12H-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

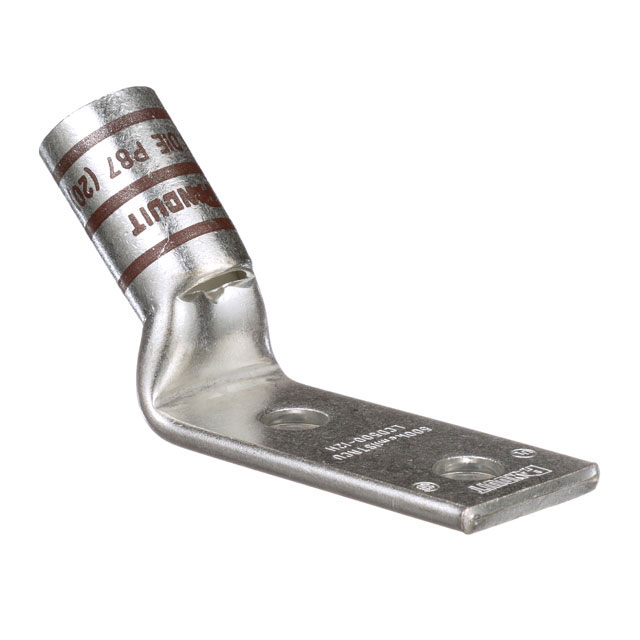

Panduit Corp Pan-Lug™ LCD500-12H-6 is a non-insulated, rectangular tongue terminal connector designed for high-capacity power applications. This component features a 500 MCM (kcmil) wire gauge capacity and a 1/2 inch stud size, with two stud holes for secure mounting. Manufactured with a brown color designation and a barrel termination for crimping, it ensures reliable connections in demanding environments. The terminal style is rectangular tongue with a width of 1.540" (39.12mm) and a tab thickness of 0.220" (5.59mm). Mounting is supported in a free hanging (in-line) configuration or at a 45° angle. This Panduit Corp terminal is commonly utilized in industrial power distribution, heavy equipment manufacturing, and renewable energy infrastructure.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
