LCD500-12F-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

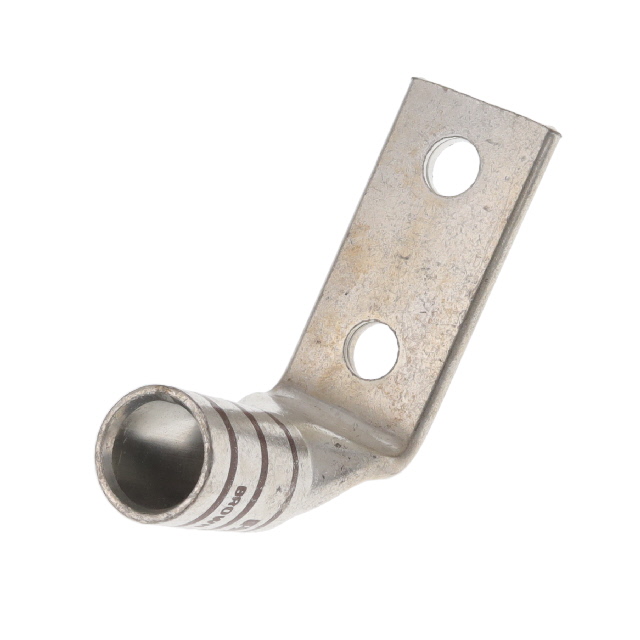

Panduit Corp Pan-Lug™ LCD500-12F-6 is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 500 MCM (kcmil) wire gauge capacity with a 1/2 stud size for secure mounting. The terminal style accommodates two stud holes, and the termination method is Crimp/Barrel. With an overall width of 1.540 inches (39.12mm) and a tab thickness of 0.220 inches (5.59mm), it provides substantial surface area for reliable conductivity. The mounting type is suitable for Free Hanging (In-Line) or Right Angle configurations. Typically utilized in power distribution, industrial automation, and heavy equipment manufacturing, the LCD500-12F-6 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
