LCD500-12EF-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

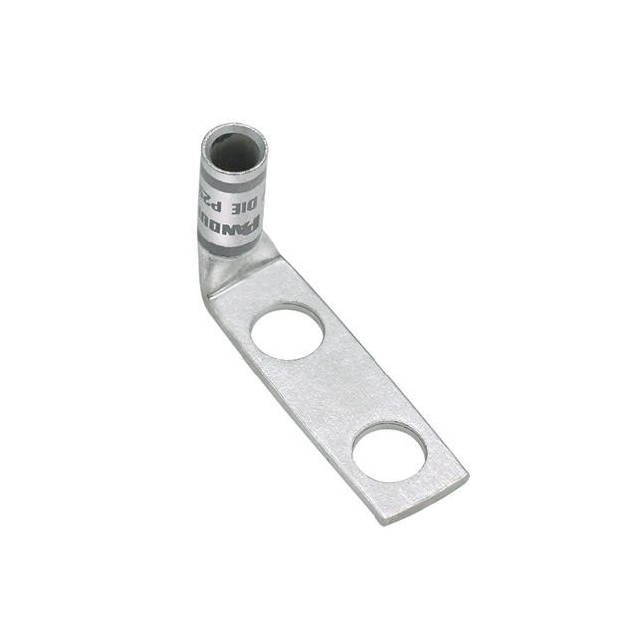

Panduit Corp Pan-Lug™ LCD500-12EF-6 is a non-insulated, rectangular tongue terminal designed for high-current applications. This crimp-style terminal accommodates wire sizes up to 500 MCM (kcmil) and features a 1/2 stud size with two mounting holes. The overall width is 1.540 inches (39.12mm) with a tab thickness of 0.220 inches (5.59mm). Its robust construction and reliable termination methods make it suitable for power distribution, industrial automation, and renewable energy systems. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
