LCD500-12E-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

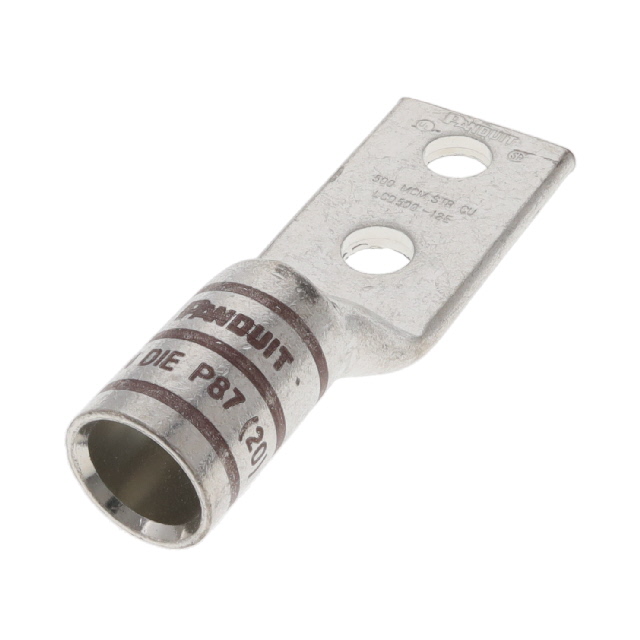

Panduit Corp Pan-Lug™ LCD500-12E-6 is a non-insulated, rectangular tongue terminal connector designed for high-current applications. This component features two stud holes for a 1/2 inch stud size and is rated for 500MCM (kcmil) wire gauge. The terminal is manufactured with a robust construction, offering a tab thickness of 0.220 inches (5.59mm) and an overall length of 4.740 inches (120.40mm). Its 1.540 inch (39.12mm) outer width provides a secure connection point. The termination method is crimp, utilizing a barrel design for reliable electrical contact. This terminal is commonly employed in power distribution, industrial control systems, and heavy equipment manufacturing, where dependable electrical connections are paramount. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 4.740"" (120.40mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
