LCD500-00-6
CONN TERM RECT TONG 500 MCMManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

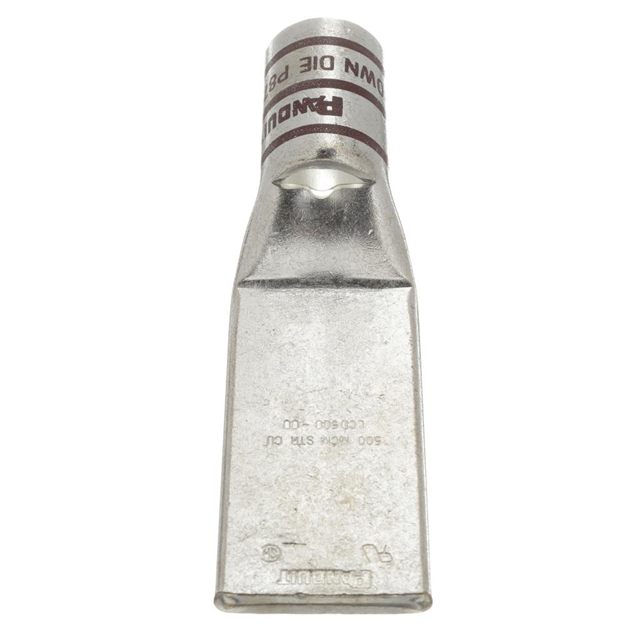

Panduit Corp Pan-Lug™ LCD500-00-6 is a non-insulated, rectangular tongue terminal connector designed for crimp termination. This component accommodates 500 MCM (kcmil) wire gauge, featuring a substantial tab thickness of 0.220" (5.59mm) and an overall length of 5.370" (136.40mm). The outer edges measure 1.540" (39.12mm) in width. Its free-hanging, in-line mounting type facilitates straightforward installation. The Panduit Corp Pan-Lug™ LCD500-00-6 is commonly utilized in power distribution, industrial automation, and heavy-duty electrical systems where reliable high-current connections are critical. Supplied in bulk packaging, this terminal connector is engineered for robust performance in demanding environments.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 5.370"" (136.40mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | No Stud Hole |
