LCD400-38D-6
CONN TERM RECT TONG 400 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

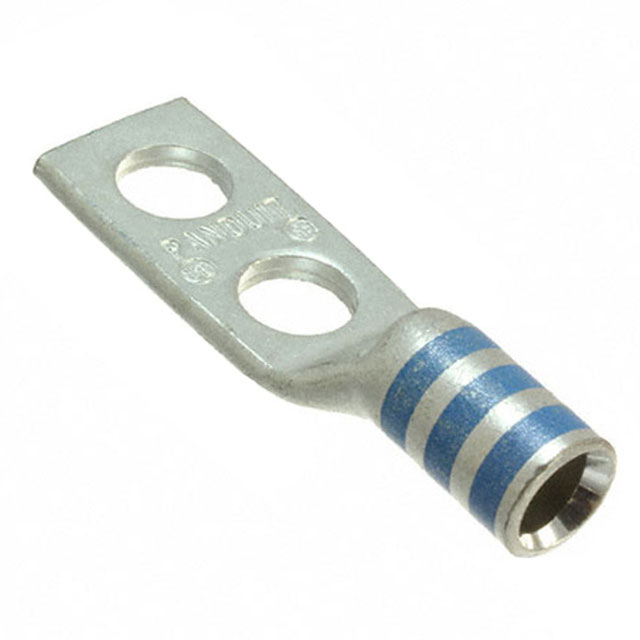

Panduit Corp Pan-Lug™ LCD400-38D-6 is a non-insulated, rectangular tongue terminal connector designed for high-power applications. This component features a crimp barrel termination and accommodates a 400 MCM (kcmil) wire gauge. The terminal boasts two stud holes, with a stud size of 3/8, and a tab thickness of 0.180 inches (4.57mm). Its overall length is 3.860 inches (98.04mm) and the outer edges measure 1.390 inches (35.31mm) in width. The mounting type is free hanging (in-line). This terminal is commonly utilized in power distribution, industrial automation, and renewable energy systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 3.860"" (98.04mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Two Stud Holes |
