LCD4-38DH-L
CONN TERM RECT TONG 4 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

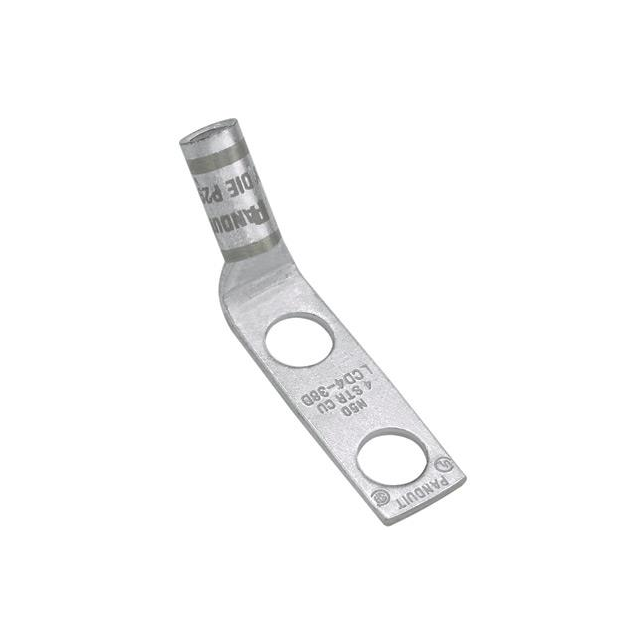

Panduit Corp Pan-Lug™ LCD4-38DH-L is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component features a 3/8 stud size and accommodates 4 AWG wire gauge with a barrel termination suitable for crimping. The terminal style includes two stud holes, with a tab thickness of 0.080 inches (2.03mm) and an outer width of 0.620 inches (15.75mm). Mounting is flexible, supporting free-hanging (in-line) and 45° angle configurations. This Panduit Corp terminal is commonly employed in power distribution, industrial automation, and renewable energy systems where reliable and secure electrical connections are critical. The component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
