LCD4-38DF-L
CONN TERM RECT TONG 4 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

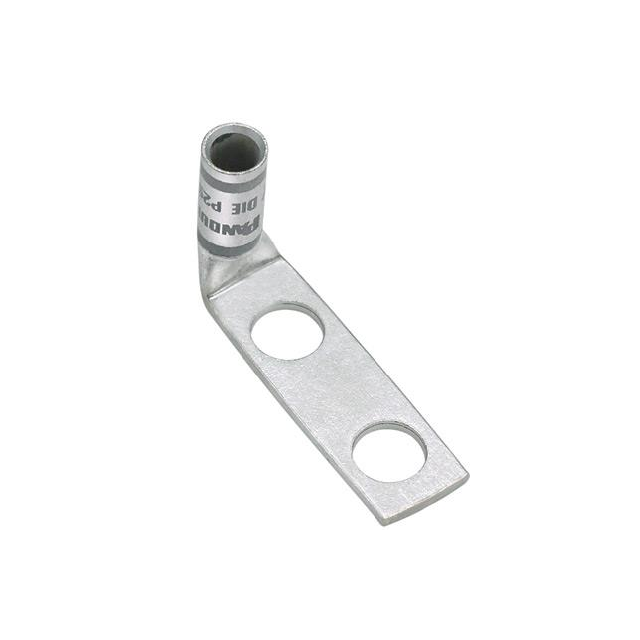

Panduit Corp Pan-Lug™ LCD4-38DF-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 4 AWG wire gauge and features a 3/8 stud size for secure mounting. The terminal style includes two stud holes, and the termination method is crimp with a barrel. With an outer width of 0.620 inches (15.75mm) and a tab thickness of 0.080 inches (2.03mm), it offers substantial contact area. The mounting type supports free hanging (in-line) and right-angle configurations. This Panduit Corp component is commonly utilized in industrial and power distribution applications where reliable termination of heavy gauge conductors is paramount. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
