LCD4-14DF-L
CONN TERM RECT TONG 4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

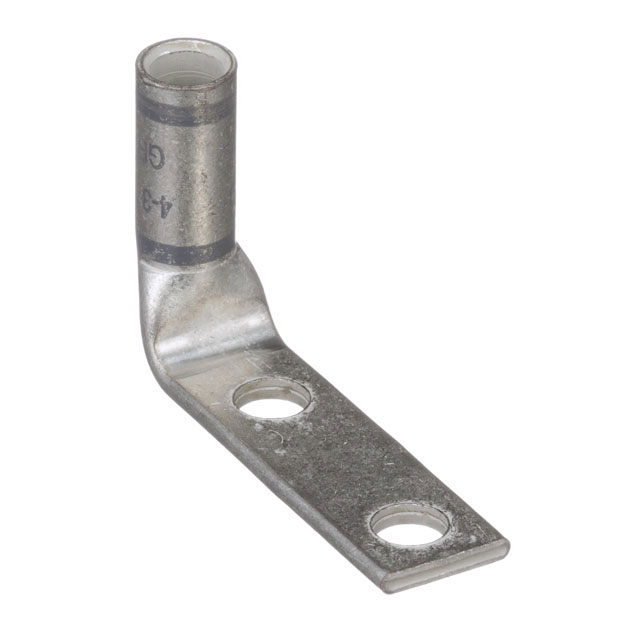

Panduit Corp Pan-Lug™ LCD4-14DF-L is a non-insulated rectangular tongue terminal designed for 4 AWG wire. This component features a 1/4 stud size with a tab thickness of 0.090 inches (2.29mm). The terminal style includes two stud holes, and the termination method is crimp with a barrel. The overall width is 0.550 inches (13.97mm). This Panduit Corp terminal is suitable for in-line and right-angle mounting configurations. It is commonly utilized in power distribution and electrical connection applications within industrial and telecommunications sectors. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
