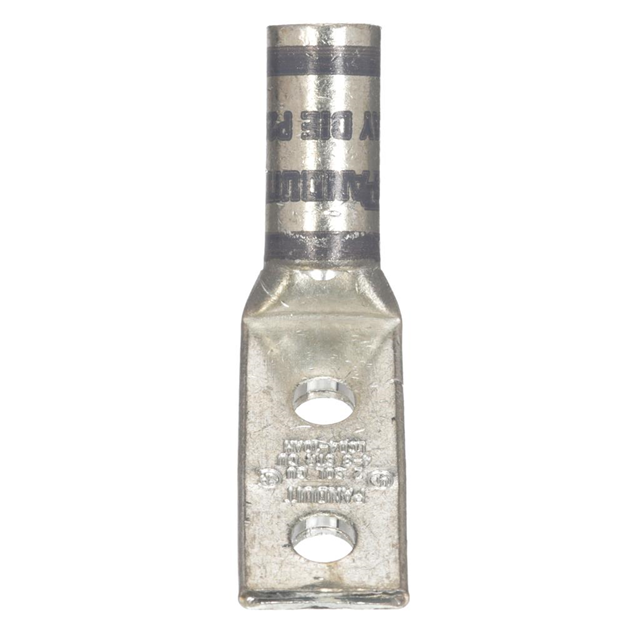

LCD4-10AH-L
CONN TERM RECT TONG 4 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCD4-10AH-L is a non-insulated, rectangular tongue terminal connector designed for demanding electrical applications. This component utilizes a crimp termination method with a barrel for secure wire connections. It is engineered to accept 4 AWG wire and features two #10 stud holes for mounting. With a tab thickness of 0.090"" (2.29mm) and an outer width of 0.550"" (13.97mm), this terminal is suitable for high-current power distribution and electrical infrastructure projects. Its mounting type offers flexibility, supporting free hanging (in-line) or 45° angle configurations. This Panduit Corp terminal is commonly specified in industrial automation, power generation, and heavy equipment industries where reliable and robust electrical connections are critical. Available in bulk packaging, the LCD4-10AH-L provides a durable solution for robust electrical terminations.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
