LCD4-10AF-L
CONN TERM RECT TONG 4 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

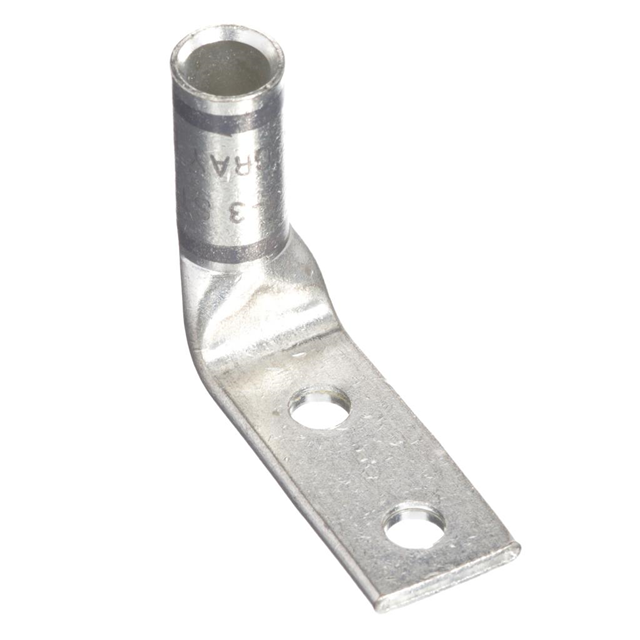

Panduit Corp Pan-Lug™ LCD4-10AF-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component is engineered for 4 AWG wire gauge and features two stud holes, accommodating a #10 stud size. The terminal style is a rectangular tongue with a tab thickness of 0.090" (2.29mm) and an outer edge width of 0.550" (13.97mm). Termination is achieved via a barrel crimp. The mounting type is suitable for free-hanging (in-line) or right-angle configurations. This Panduit Corp Pan-Lug™ terminal connector is utilized in industrial automation, power distribution, and telecommunications infrastructure. Packaging is provided in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
