LCD4/0-14B-X
CONN TERM RECT TONG 4/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

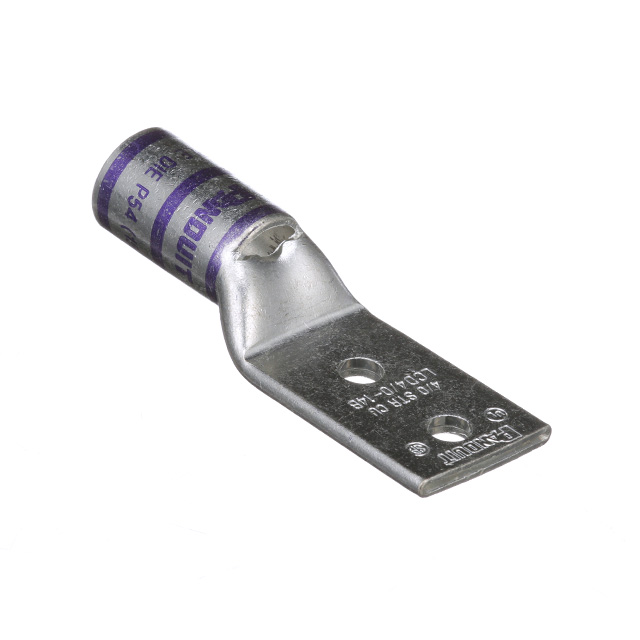

Panduit Corp Pan-Lug™ LCD4-0-14B-X is a non-insulated, rectangular tongue terminal connector designed for 4/0 AWG wire. Featuring a 0.140" (3.56mm) tab thickness and a 1/4" stud size, this terminal offers a robust crimp termination with a barrel design. Its overall length is 3.100" (78.74mm) with an outer edge width of 1.060" (26.92mm). The terminal style includes two stud holes for secure mounting. This component is suitable for free-hanging, in-line applications and is commonly utilized in power distribution, industrial automation, and renewable energy sectors. Supplied in bulk packaging, this purple terminal connector exemplifies Panduit's commitment to reliable electrical connections.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 3.100"" (78.74mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
