LCD350-12F-X
CONN TERM RECT TONG 350 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

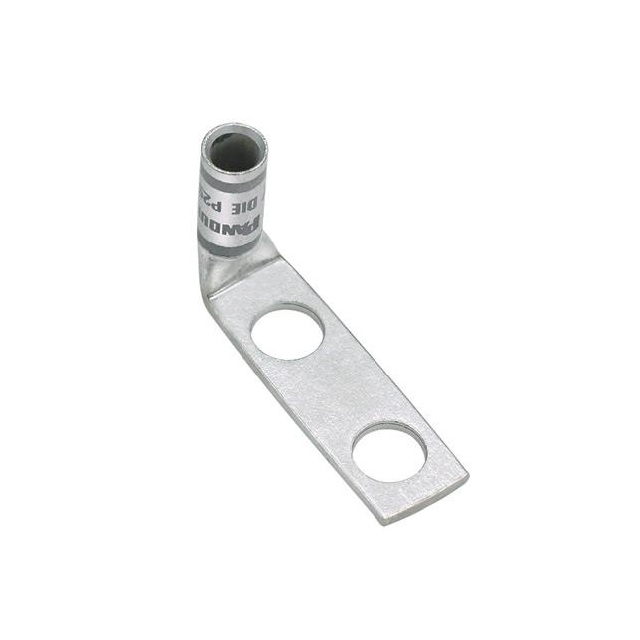

Panduit Corp Pan-Lug™ LCD350-12F-X is a non-insulated, rectangular tongue terminal connector designed for 350 MCM (kcmil) wire. This component features a 1/2 stud size with a tab thickness of 0.170" (4.32mm) and an overall width of 1.280" (32.51mm). The terminal style includes two stud holes, facilitating secure mounting. Termination is achieved via crimp barrel. It is suitable for in-line or right-angle mounting configurations within bulk packaging. This Panduit Corp connector is commonly utilized in power distribution and industrial automation applications where robust electrical connections are critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Two Stud Holes |
