LCD300-12F-X
CONN TERM RECT TONG 300 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

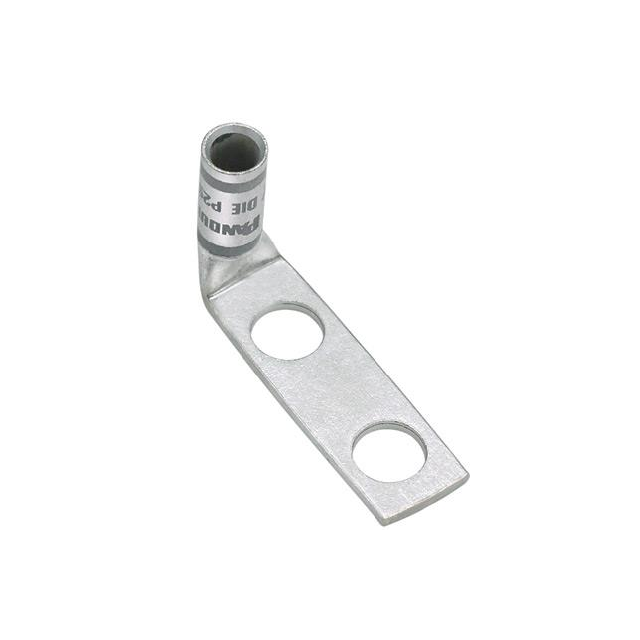

Panduit Corp Pan-Lug™ LCD300-12F-X is a non-insulated, rectangular tongue terminal connector designed for high-current applications. It features a 300 kcmil wire gauge capacity and accommodates a 1/2 stud size. The terminal style incorporates two stud holes with a tab thickness of 0.160 inches. This connector utilizes a crimp barrel termination method. Its overall width is 1.190 inches, and it supports both free hanging (in-line) and right-angle mounting types. This component is commonly utilized in power distribution, industrial automation, and renewable energy sectors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 300MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.190"" (30.23mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
