LCD3/0-00-X
CONN TERM RECT TONG 3/0 AWGManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

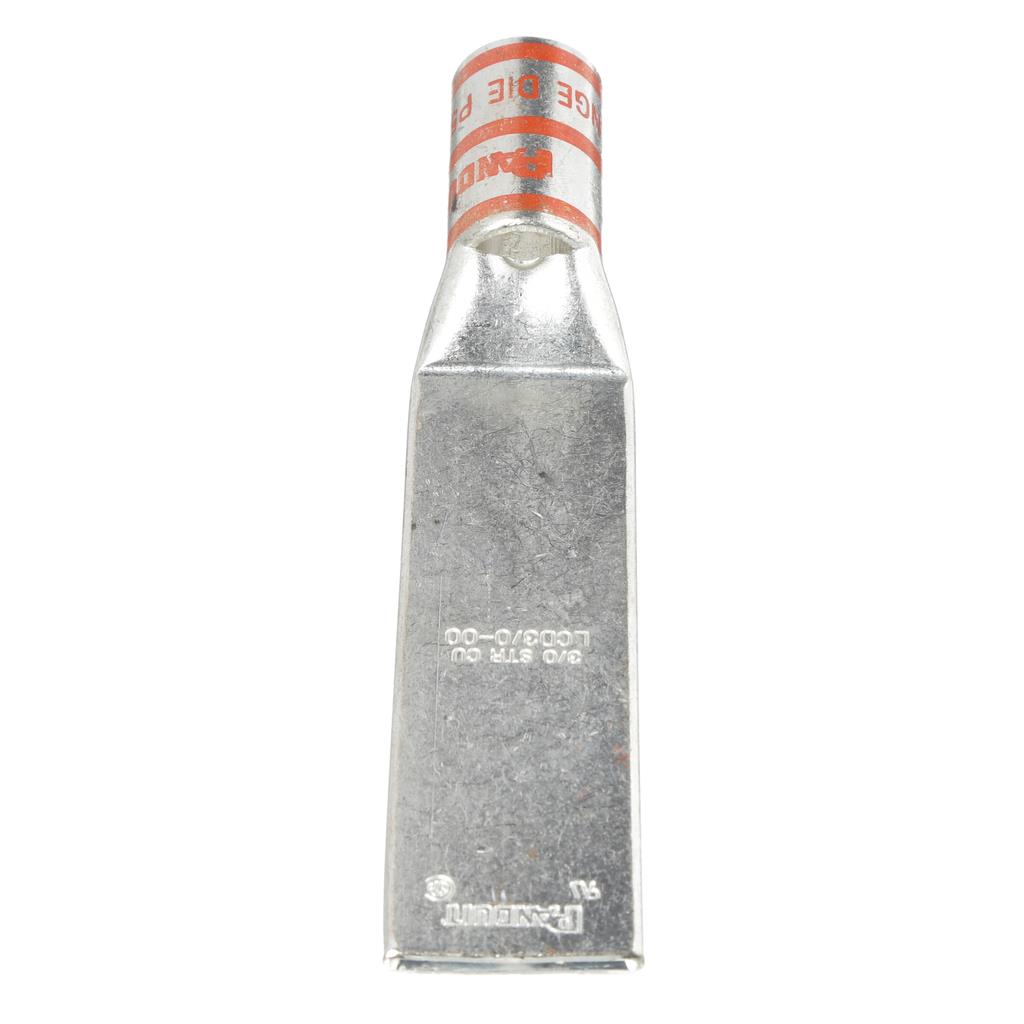

Panduit Corp Pan-Lug™ Rectangular Tongue Terminal Connector, part number LCD3-0-00-X, is designed for high-current applications requiring robust termination. This non-insulated, bulk-packaged component features a 3/0 AWG wire gauge capacity and a Crimp, Barrel termination method. The rectangular tongue provides a secure connection point with a tab thickness of 0.130 inches (3.30mm) and an overall length of 4.490 inches (114.00mm). The outer edges measure 0.960 inches (24.38mm) in width. Mounting is configured for free hanging (in-line) applications. This terminal connector is commonly utilized in power distribution, industrial control systems, and heavy-duty electrical equipment.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 4.490"" (114.00mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | No Stud Hole |
