LCD250-00-X
CONN TERM RECT TONG 250 MCMManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

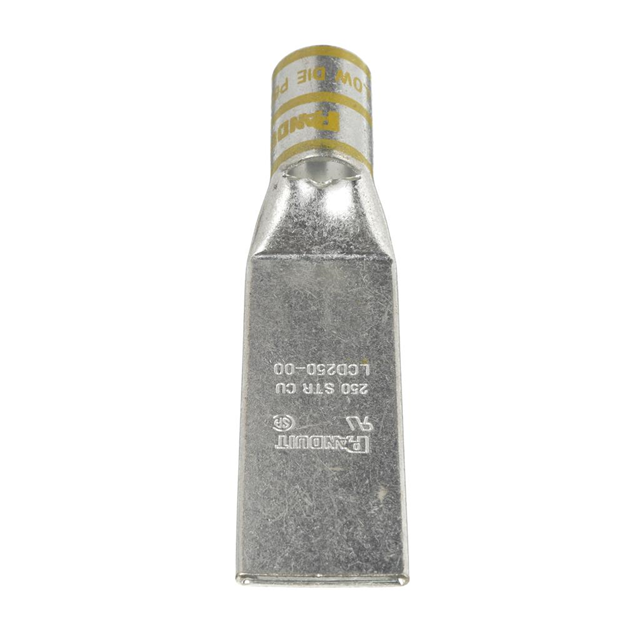

Panduit Corp's Pan-Lug™ LCD250-00-X is a non-insulated, rectangular tongue terminal connector designed for crimp termination. This component utilizes a barrel termination and is engineered for 250MCM (kcmil) wire gauge. Key dimensions include an overall length of 4.680 inches (118.87mm) and a tab thickness of 0.140 inches (3.56mm), with an outer edge width of 1.170 inches (29.72mm). The mounting type is free hanging (in-line). This Panduit Corp terminal connector is suitable for applications in power distribution and industrial automation where robust electrical connections are critical. Packaged in bulk, the LCD250-00-X offers a reliable solution for high-current wire termination.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 4.680"" (118.87mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | No Stud Hole |
