LCD2-56B-Q
CONN TERM RECT TONG 2 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

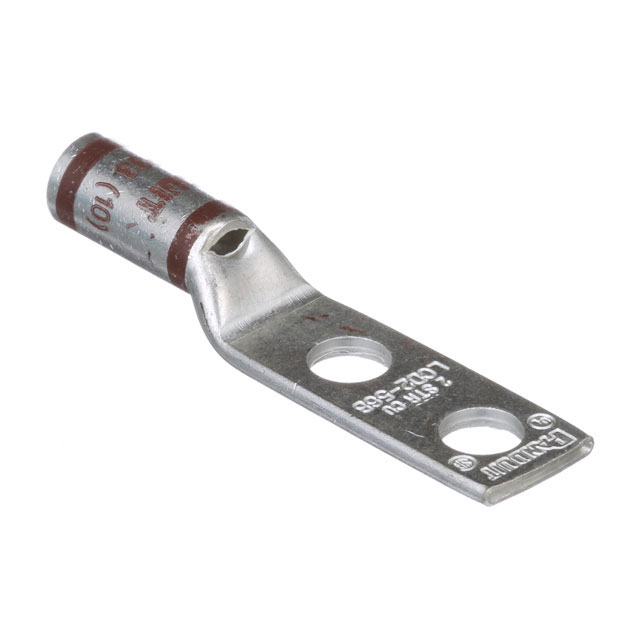

Panduit Corp Pan-Lug™ LCD2-56B-Q is a non-insulated, rectangular tongue terminal connector designed for 2 AWG wire. This component features a two-stud hole configuration with a 5/16" stud size and a tab thickness of 0.100". The overall length is 2.650" (67.31mm) with an outer edge width of 0.660" (16.76mm). Termination is achieved via a crimp barrel. This product is supplied in bulk packaging and is suitable for applications in industrial automation, power distribution, and heavy equipment manufacturing where reliable electrical connections are critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 2.650"" (67.31mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.660"" (16.76mm) |
| Tab Thickness | 0.100"" (2.54mm) |
| Terminal Style | Two Stud Holes |
