LCD2-14DF-Q
CONN TERM RECT LUG 2 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

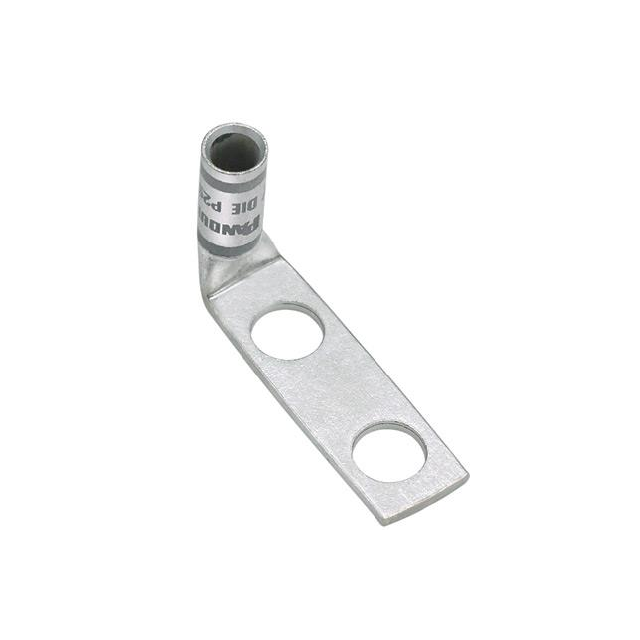

Panduit Corp Pan-Lug™ LCD2-14DF-Q is a non-insulated rectangular lug terminal designed for robust electrical connections. This component, suitable for 2 AWG wire, features a 1/4 stud size and a tab thickness of 0.100 inches. The terminal style accommodates two stud holes, facilitating secure grounding applications. Termination is achieved via crimp barrel, ensuring reliable electrical and mechanical performance. With a width of 0.600 inches, this lug is engineered for in-line or right-angle mounting configurations. Its brown color denotes its specific material properties or application. This Panduit Corp component is utilized in industrial automation, power distribution, and heavy equipment manufacturing sectors where reliable grounding is paramount.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.600"" (15.24mm) |
| Tab Thickness | 0.100"" (2.54mm) |
| Terminal Style | Two Stud Holes |
