LCD2-12H-Q
CONN TERM RECT TONG 2 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

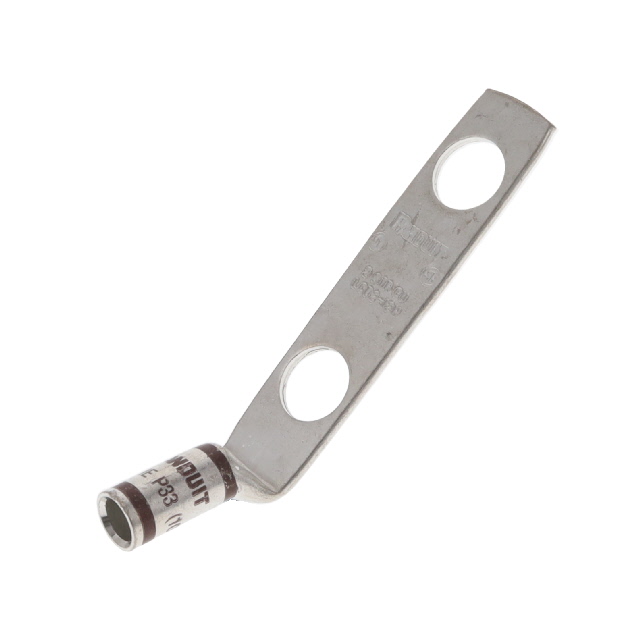

Panduit Corp Pan-Lug™ LCD2-12H-Q is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 2 AWG wire and features two stud holes, specified for a 1/2 stud size with a tab thickness of 0.080 inches (2.03mm). The overall width is 0.750 inches (19.05mm). Termination is achieved via crimp onto the barrel. Mounting options include free hanging (in-line) or at a 45° angle, facilitating flexible installation in various configurations. This Panduit Corp terminal is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
