LCD2-12F-Q
CONN TERM RECT TONG 2 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

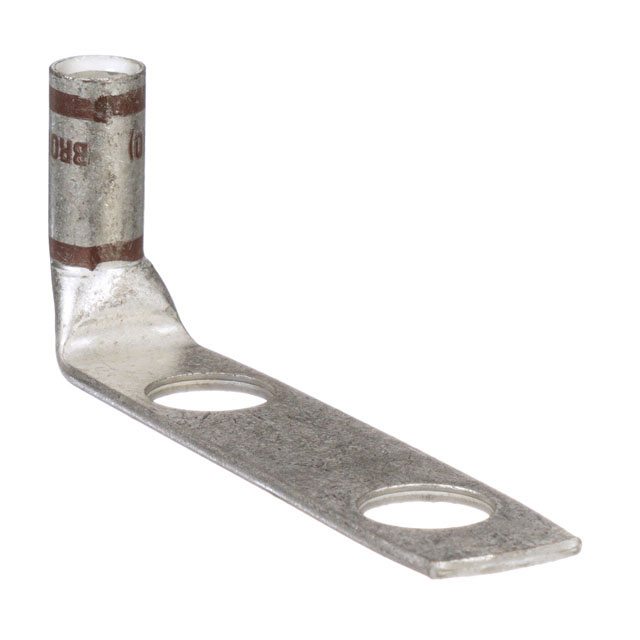

Panduit Corp Pan-Lug™ LCD2-12F-Q is a non-insulated, rectangular tongue terminal connector designed for 2 AWG wire. This component features a brown color and a bulk packaging configuration. The terminal style includes two stud holes, with a stud/tab size of 1/2" and a tab thickness of 0.080" (2.03mm). The overall width is 0.750" (19.05mm). Termination is achieved via crimp, barrel. Mounting options include free hanging (in-line) and right angle. This terminal connector is suitable for applications in power distribution and industrial automation.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
