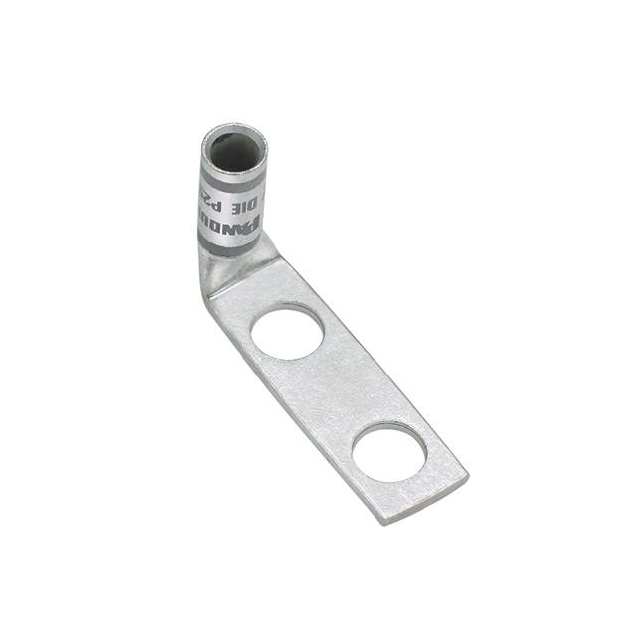

LCD10-38DF-L
CONN TERM RECT TONG 10 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCD10-38DF-L offers a robust solution for wire termination. This non-insulated rectangular tongue terminal is designed for 10 AWG wire, featuring a 3/8 stud size for secure connection. The terminal style incorporates two stud holes, accommodating specific mounting requirements, with a tab thickness of 0.040" (1.02mm) and an outer width of 0.560" (14.22mm). Termination is achieved via crimp to the barrel. The mounting type supports both free hanging (in-line) and right-angle configurations, providing flexibility in assembly. This component is commonly utilized in power distribution and industrial automation applications where reliable electrical connections are critical. Packaged in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 10 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.560"" (14.22mm) |
| Tab Thickness | 0.040"" (1.02mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
