LCD10-14AH-L
CONN TERM RECT TONG 10 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

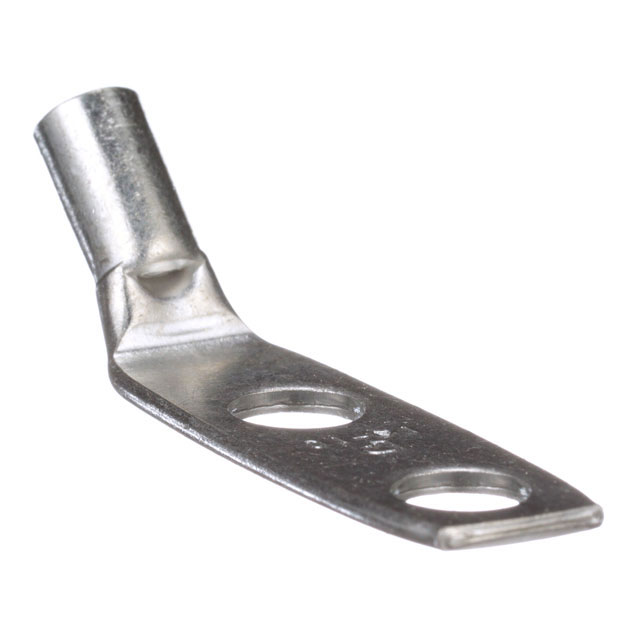

Panduit Corp Pan-Lug™ terminal connector, part number LCD10-14AH-L, is a non-insulated, rectangular tongue terminal designed for 10 AWG wire. This component features a 1/4" stud size with a tab thickness of 0.050". The terminal style includes two stud holes, facilitating secure connections. Termination is achieved via crimp to the barrel. The overall width of the terminal is 0.420". Mounting options include free hanging (in-line) and a 45° angle. This Panduit Corp component is commonly utilized in electrical power distribution and industrial automation applications where reliable wire termination is critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 10 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.420"" (10.67mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Two Stud Holes |
