LCD1-14BF-E
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

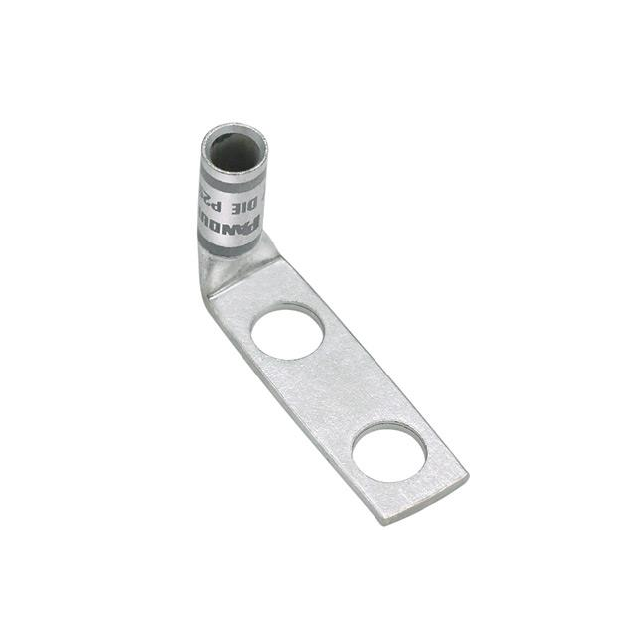

Panduit Corp Pan-Lug™ LCD1-14BF-E is a non-insulated, rectangular tongue terminal connector designed for reliable wire termination. This component is engineered for 1 AWG wire gauge and features a 1/4 stud size with a tab thickness of 0.110 inches. The terminal style includes two stud holes, facilitating secure mounting and connection. Termination is achieved via crimp to a barrel. Its overall width at the outer edges is 0.700 inches. Applications for this part are prevalent in industrial power distribution, control systems, and general electrical wiring where robust and secure connections are critical. The LCD1-14BF-E is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
