LCD1-12F-E
CONN TERM RECT TONG 1 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

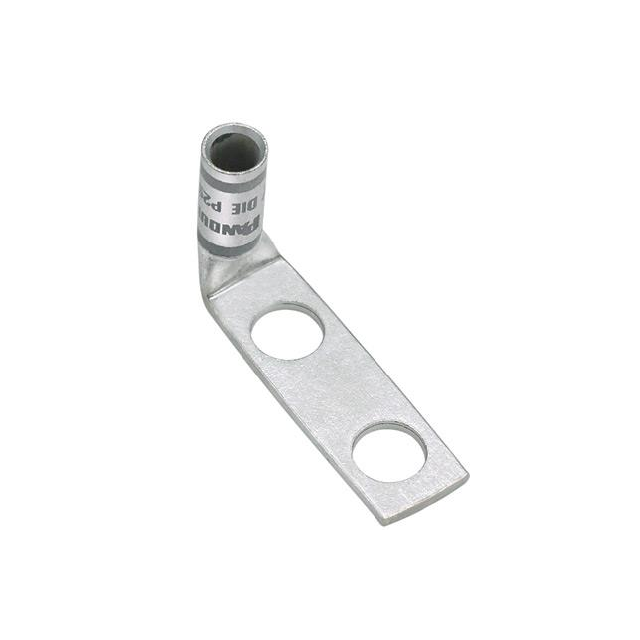

Panduit Corp Pan-Lug™ LCD1-12F-E is a non-insulated, rectangular tongue terminal connector designed for terminating 1 AWG wire. This component features a 0.090" (2.29mm) tab thickness and accommodates a 1/2" stud size. The terminal style includes two stud holes, and the termination method is Crimp, Barrel. With an overall width of 0.750" (19.05mm), the LCD1-12F-E offers a robust connection solution. It is suitable for mounting in free hanging (in-line) or right angle configurations. This Panduit Corp terminal is commonly utilized in industrial power distribution and heavy equipment manufacturing applications where reliable electrical connections are paramount. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
