LCD1-12-E
CONN TERM RECT TONG 1 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

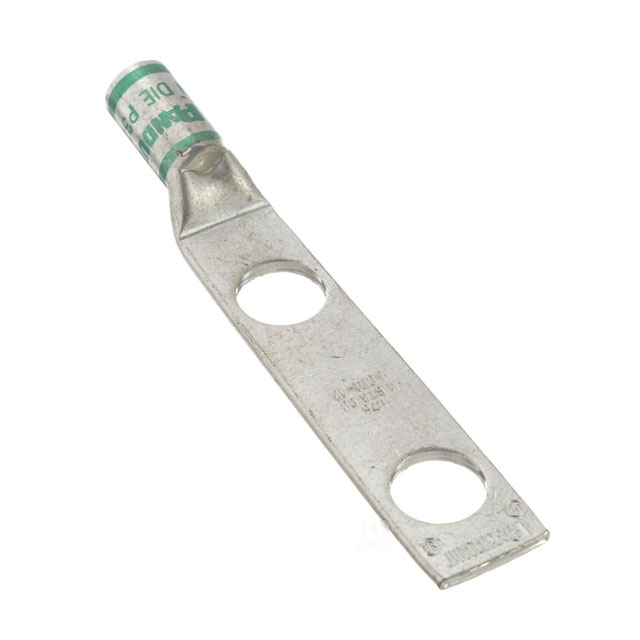

Panduit Corp Pan-Lug™ LCD1-12-E is a non-insulated rectangular tongue terminal connector designed for 1 AWG wire. This component features a two-stud hole configuration with a 1/2 stud size and a tab thickness of 0.090 inches. The overall length is 4.160 inches, and the outer edge width is 0.750 inches. Termination is achieved via crimp to the barrel. This terminal is suitable for applications requiring robust electrical connections and is commonly found in power distribution and industrial control systems. The Panduit Corp Pan-Lug™ series offers reliable and durable solutions for demanding electrical infrastructure.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 4.160"" (105.66mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
