LCD1/0-38DH-X
CONN TERM RECT TONG 1/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

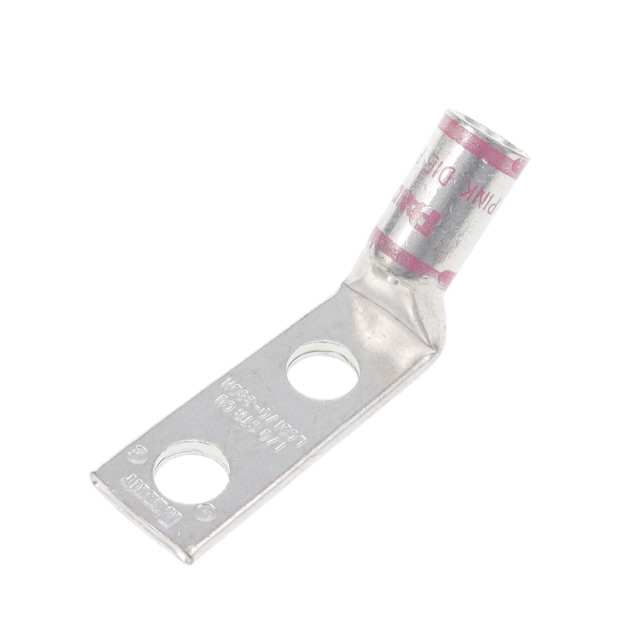

The Panduit Corp Pan-Lug™ Series LCD1-0-38DH-X is a non-insulated, rectangular tongue terminal designed for reliable electrical connections. Featuring a 1/0 AWG wire gauge capacity and a 3/8" stud size, this terminal offers a robust termination solution. The unique two-stud hole configuration and 45° angle mounting provide flexibility in application. Manufactured with a 0.120" (3.05mm) tab thickness and an overall width of 0.760" (19.30mm), it is suitable for crimp barrel terminations. This component is utilized in demanding industrial and power distribution applications where secure and efficient wire management is critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
