LCD1/0-14B-X
CONN TERM RECT TONG 1/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

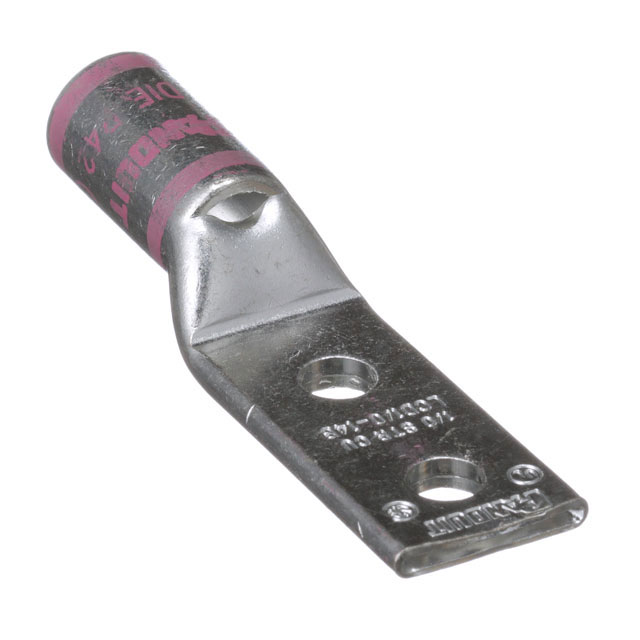

Panduit Corp Pan-Lug™ LCD1-0-14B-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 1/0 AWG wire gauge capacity with a 1/4" stud size and two stud holes for secure mounting. The terminal style offers a reliable crimp termination through its barrel. With an overall length of 2.700" and an outer edge width of 0.760", it provides substantial contact area. The tab thickness measures 0.120". This connector is suitable for free hanging (in-line) applications and is commonly utilized in industrial power distribution and heavy-duty electrical equipment manufacturing. The Panduit Corp Pan-Lug™ series ensures dependable performance in demanding environments.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.700"" (68.58mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
