LCD1/0-12H-X
CONN TERM RECT TONG 1/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

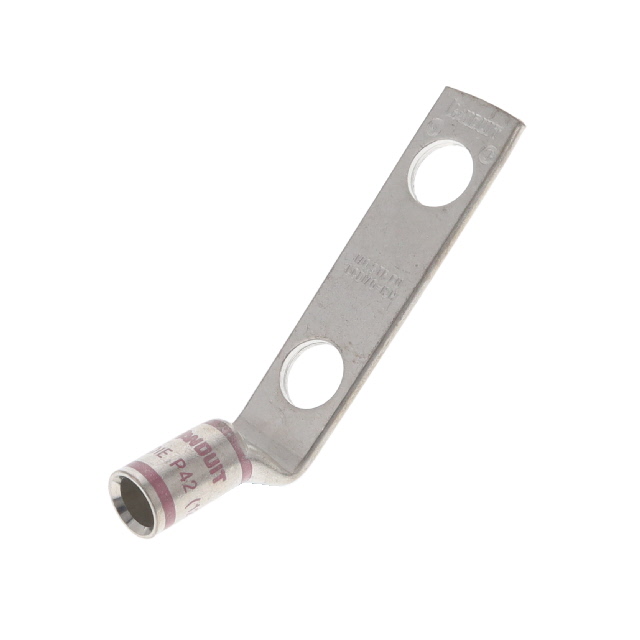

Panduit Corp Pan-Lug™ LCD1-0-12H-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 1/0 AWG wire gauge capacity and a 1/2 stud size, with a tab thickness of 0.120 inches. The terminal style includes two stud holes, and termination is achieved via a crimp barrel. Its outer width measures 0.800 inches. The Panduit Corp Pan-Lug™ LCD1-0-12H-X is suitable for applications in power distribution, industrial controls, and renewable energy systems, where reliable termination of large gauge conductors is essential. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.800"" (20.32mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
