LCCX8-38D-L
CONN TERM RECT TONG 8 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

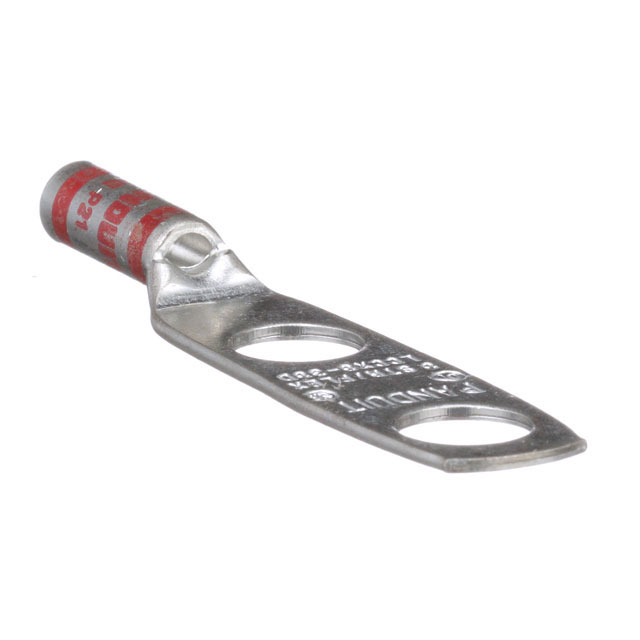

Panduit Corp's Pan-Lug™ LCCX8-38D-L is a non-insulated rectangular tongue terminal engineered for robust electrical connections. This component is designed for 8 AWG wire and features a 3/8 stud size, supporting a secure crimp termination. The terminal offers a dual stud hole configuration, providing flexibility in mounting and connection strategies. Its construction includes a tab thickness of 0.050 inches and an overall length of 2.700 inches. The LCCX8-38D-L is suitable for applications requiring reliable power and signal distribution, often found in industrial automation, energy infrastructure, and heavy equipment manufacturing. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 2.700"" (68.58mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.600"" (15.24mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Two Stud Holes |
