LCCX8-14BF-L
CONN TERM RECT TONG 8 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

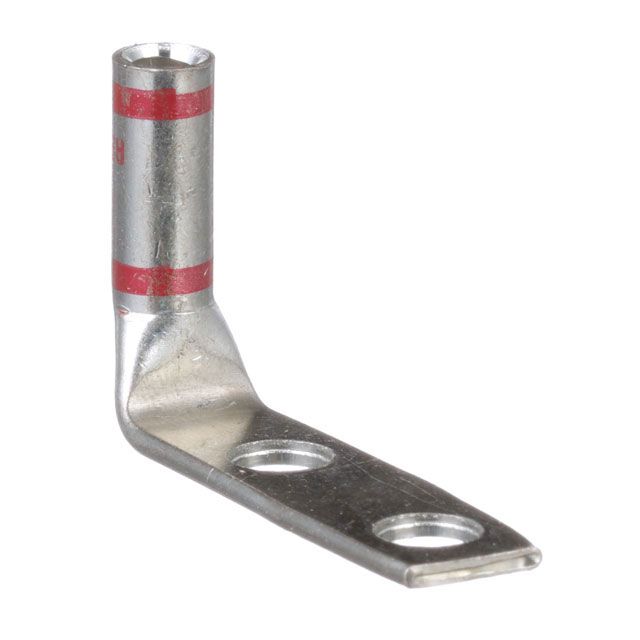

Panduit Corp Pan-Lug™ LCCX8-14BF-L is a non-insulated, rectangular tongue terminal designed for 8 AWG wire. This component features a 1/4 stud size with a tab thickness of 0.070 inches (1.78mm) and two stud holes for secure mounting. The overall width is 0.480 inches (12.19mm). Termination is achieved via crimp to the barrel. Mounting options include free hanging (in-line) and right angle configurations. This terminal is commonly used in industrial power distribution and electrical equipment manufacturing. Packaged in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Two Stud Holes |
