LCCX8-14AH-L
CONN TERM RECT TONG 8 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

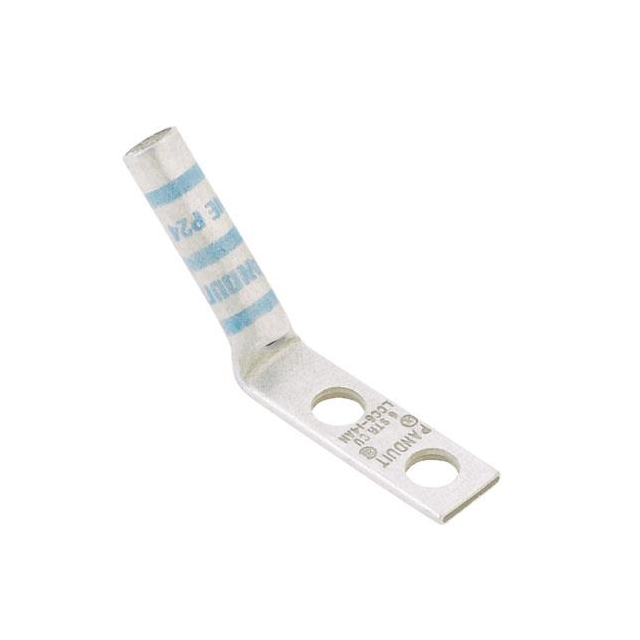

Panduit Corp Pan-Lug™ LCCX8-14AH-L is a non-insulated rectangular tongue terminal with a 1/4 stud size. This component is designed for 8 AWG wire, featuring a barrel termination for crimp connections. The terminal offers two stud holes and a tab thickness of 0.070 inches. Its mounting type is free hanging (in-line) with a 45° angle capability. The overall width is 0.480 inches. This component is suitable for applications in power distribution and industrial control systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Two Stud Holes |
