LCCX8-14AB-L
CONN TERM RECT TONG 8 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

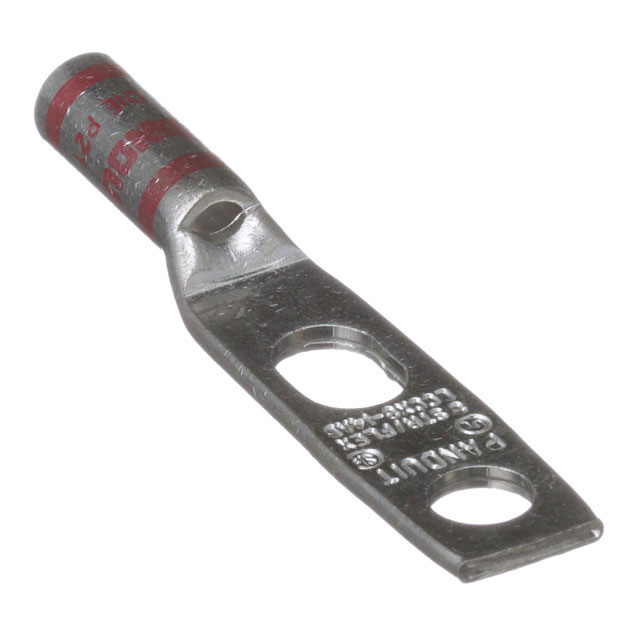

Panduit Corp Pan-Lug™ LCCX8-14AB-L is a non-insulated rectangular tongue terminal designed for robust electrical connections. This component accommodates 8 AWG wire and features a 1/4 stud size for secure mounting. With a two-stud hole configuration and a barrel termination designed for crimping, it ensures reliable strain relief and conductivity. The overall length is 2.230 inches (56.64mm), with a tab thickness of 0.070 inches (1.78mm) and an outer width of 0.480 inches (12.19mm). This terminal is suitable for in-line, free-hanging applications. Its durable construction makes it a choice for demanding industrial and power distribution environments. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.230"" (56.64mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Two Stud Holes |
