LCCX8-10AF-L
CONN TERM RECT TONG 8 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

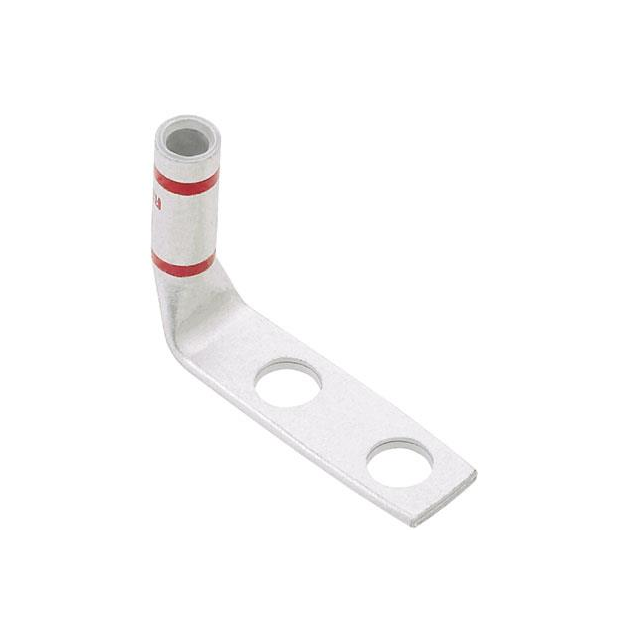

Panduit Corp Pan-Lug™ LCCX8-10AF-L is a non-insulated rectangular tongue terminal designed for robust electrical connections. This component accommodates 8 AWG wire and features a dual stud configuration with a #10 stud size. The terminal employs a crimp termination method into a barrel for secure wire attachment. Manufactured with a tab thickness of 0.080" (2.03mm) and an outer edge width of 0.410" (10.41mm), it offers reliable performance in demanding environments. Mounting options include free-hanging (in-line) and right-angle configurations. This Panduit Corp terminal is widely utilized across industrial automation, power distribution, and telecommunications sectors for its durability and secure termination capabilities.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.410"" (10.41mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
