LCCX6-38CH-L
CONN TERM RECT TONG 6 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

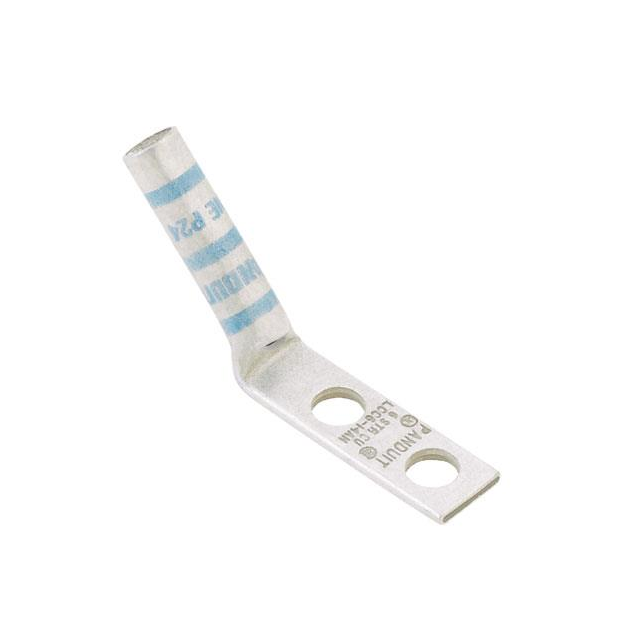

Panduit Corp Pan-Lug™ LCCX6-38CH-L is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component features a 6 AWG wire gauge capacity and a 3/8 stud size, with a tab thickness of 0.060" (1.52mm). The terminal style includes two stud holes for secure mounting. Termination is achieved via crimp connection to the barrel. With an overall width of 0.620" (15.75mm), the LCCX6-38CH-L is suitable for free-hanging or 45° angle in-line mounting configurations. This component finds application in power distribution, industrial automation, and heavy equipment manufacturing sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.060"" (1.52mm) |
| Terminal Style | Two Stud Holes |
