LCCX6-38AF-L
CONN TERM RECT TONG 6 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

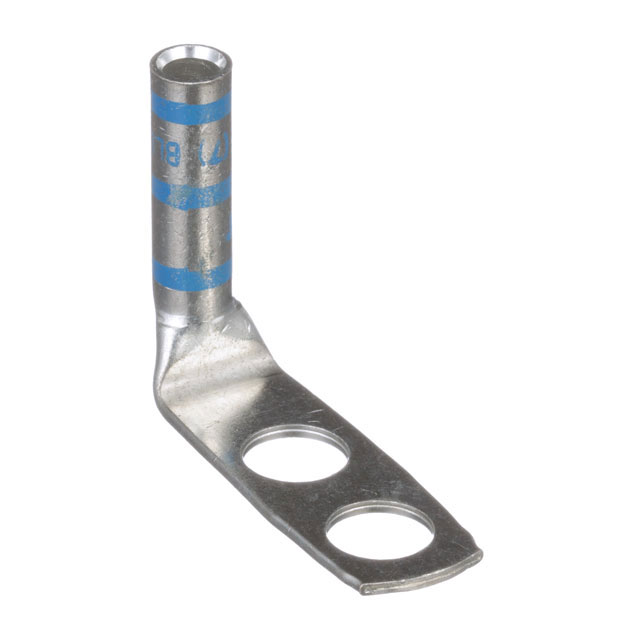

Panduit Corp Pan-Lug™ LCCX6-38AF-L is a non-insulated rectangular tongue terminal designed for robust electrical connections. This component accommodates 6 AWG wire gauge and features a 3/8 stud size for secure mounting. With a tab thickness of 0.060 inches (1.52mm) and an outer width of 0.620 inches (15.75mm), it offers substantial contact surface area. The terminal style includes two stud holes, facilitating reliable termination via crimp barrel connection. Its mounting type supports free hanging (in-line) and right-angle configurations. Applications for this Panduit Corp terminal include power distribution, industrial controls, and renewable energy systems where reliable, high-current connections are critical. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.060"" (1.52mm) |
| Terminal Style | Two Stud Holes |
