LCCX6-14DF-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

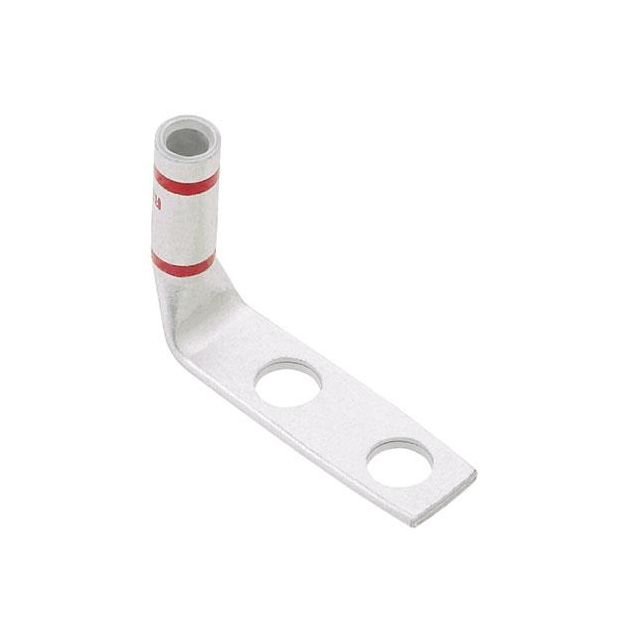

Panduit Corp Pan-Lug™ LCCX6-14DF-L is a non-insulated rectangular tongue terminal designed for robust electrical connections. This component utilizes a two-stud hole terminal style with a 1/4 Stud size and a tab thickness of 0.080 inches (2.03mm). Engineered for 6 AWG wire gauge, it features a barrel termination suitable for crimping. The overall width is 0.480 inches (12.19mm). Mounting options include free hanging (in-line) and right-angle configurations. This terminal is commonly specified in industrial automation, power distribution, and heavy equipment manufacturing for reliable wire termination. Packaged in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
