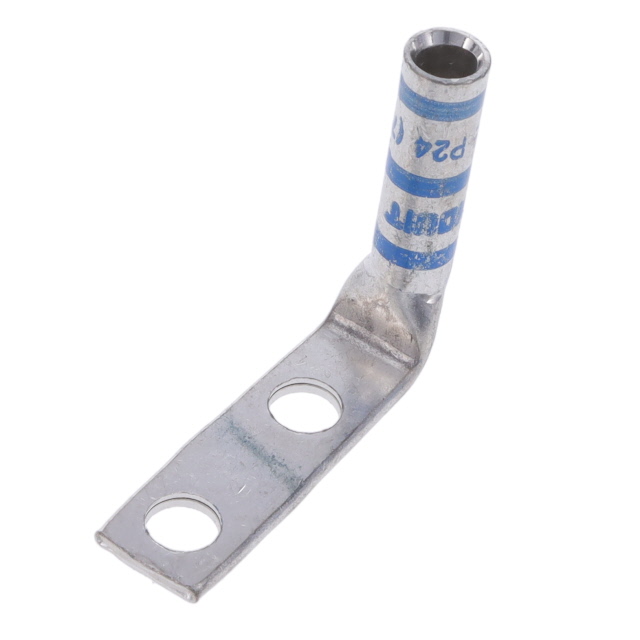

LCCX6-14BF-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCCX6-14BF-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 6 AWG wire gauge and features a 1/4 stud size with a tab thickness of 0.080 inches (2.03mm). The terminal style includes two stud holes, and the termination method is crimp barrel. With an outer edge width of 0.480 inches (12.19mm), it offers a secure connection point. The mounting type is free hanging (in-line) with a right-angle orientation. This component is typically utilized in industrial automation, power distribution, and telecommunications applications requiring reliable termination of conductors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
