LCCX4-38DF-L
CONN TERM RECT TONG 4 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

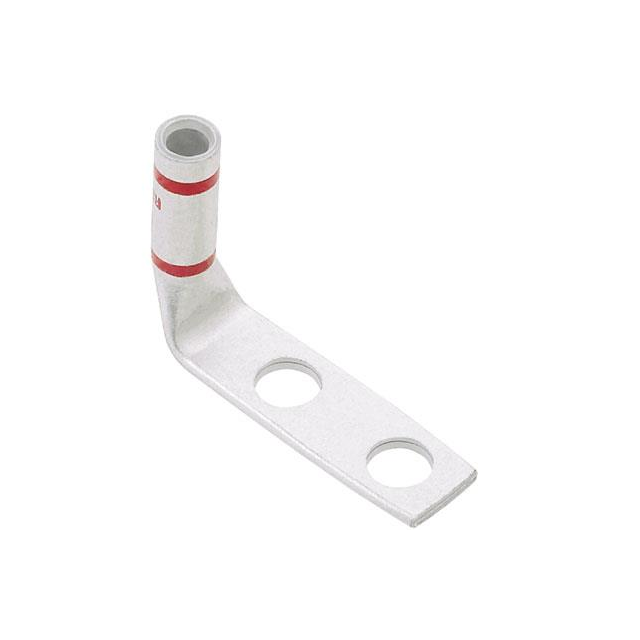

Panduit Corp Pan-Lug™ LCCX4-38DF-L is a non-insulated rectangular tongue terminal connector designed for reliable electrical connections. This component accommodates 4 AWG wire gauge and features a 3/8 stud size with a tab thickness of 0.080 inches (2.03mm). The terminal style includes two stud holes for secure mounting. Termination is achieved via crimp, with a barrel for conductor interface. The outer edges measure 0.620 inches (15.75mm) in width. This component is suitable for free hanging (in-line) and right-angle mounting configurations. It finds application in industrial power distribution and heavy equipment manufacturing. The LCCX4-38DF-L is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
