LCCX4-38BD-L
CONN TERM RECT TONG 4 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

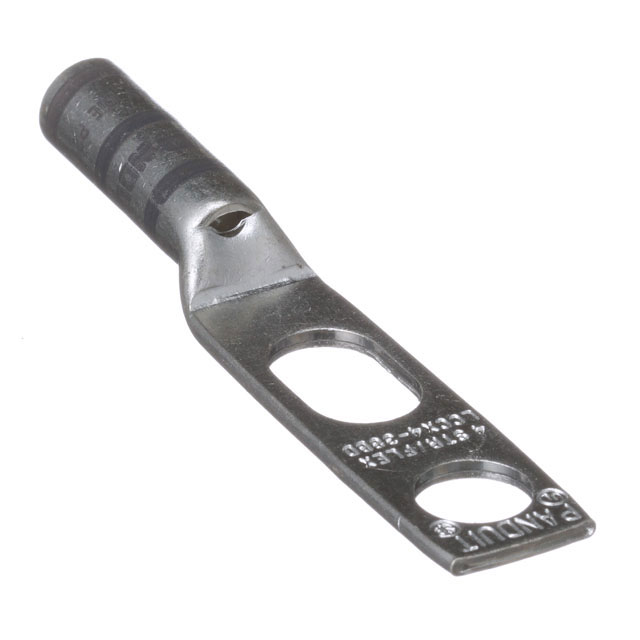

Panduit Corp Pan-Lug™ LCCX4-38BD-L is a non-insulated rectangular tongue terminal designed for 4 AWG wire. This Crimp, Barrel termination lug features a 3/8 Stud size and two stud holes for robust connection. The overall length is 3.170" (80.52mm) with a tab thickness of 0.080" (2.03mm) and an outer edge width of 0.620" (15.75mm). Its free hanging (in-line) mounting type facilitates flexible installation. This component is commonly utilized in power distribution and industrial automation applications requiring reliable wire termination. Packaged in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 3.170"" (80.52mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
