LCCX4-38B-L
CONN TERM RECT TONG 4 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

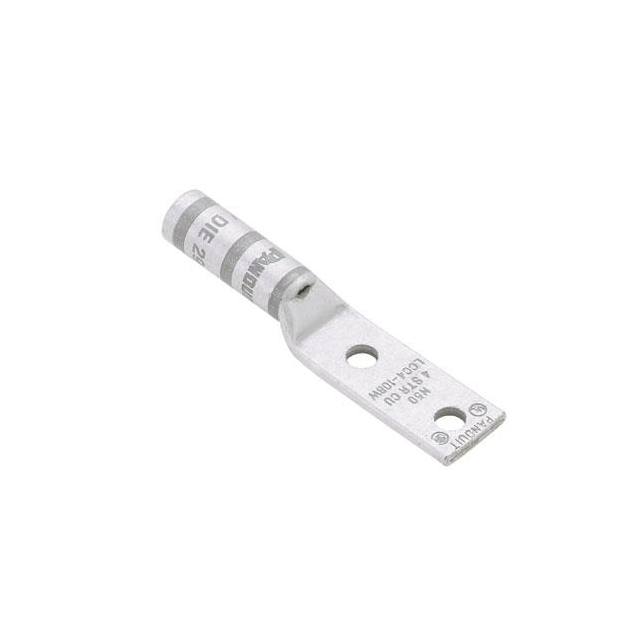

Panduit Corp LCCX4-38B-L is a Pan-Lug™ series non-insulated rectangular tongue terminal designed for demanding applications. This component features a robust construction suitable for crimp termination onto 4 AWG wire. The terminal is equipped with two 3/8 Stud mounting holes, facilitating secure connections in various configurations. Its overall length is 2.840 inches (72.14mm) with a tab thickness of 0.080 inches (2.03mm) and an outer edge width of 0.620 inches (15.75mm). The LCCX4-38B-L is provided in bulk packaging. This terminal is commonly employed in power distribution, industrial automation, and heavy equipment manufacturing sectors where reliable electrical connections are paramount.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 2.840"" (72.14mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
