LCCX4-14BH-L
CONN TERM RECT TONG 4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

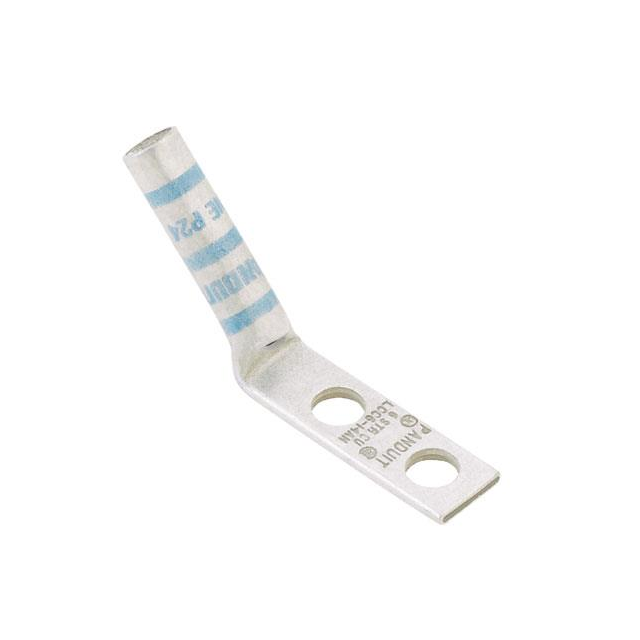

Panduit Corp Pan-Lug™ LCCX4-14BH-L is a non-insulated rectangular tongue terminal connector designed for robust electrical connections. This component features a 4 AWG wire gauge capacity and a 1/4 inch stud size, suitable for secure termination in demanding applications. The terminal style includes two stud holes, facilitating reliable mounting. Manufactured with a crimp barrel termination, it ensures a durable and efficient connection. Its rectangular tongue design, with a tab thickness of 0.090 inches and an outer edge width of 0.550 inches, is engineered for optimal contact. Commonly utilized in industrial automation, power distribution, and heavy equipment manufacturing, this component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
