LCCX4-14BF-L
CONN TERM RECT TONG 4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

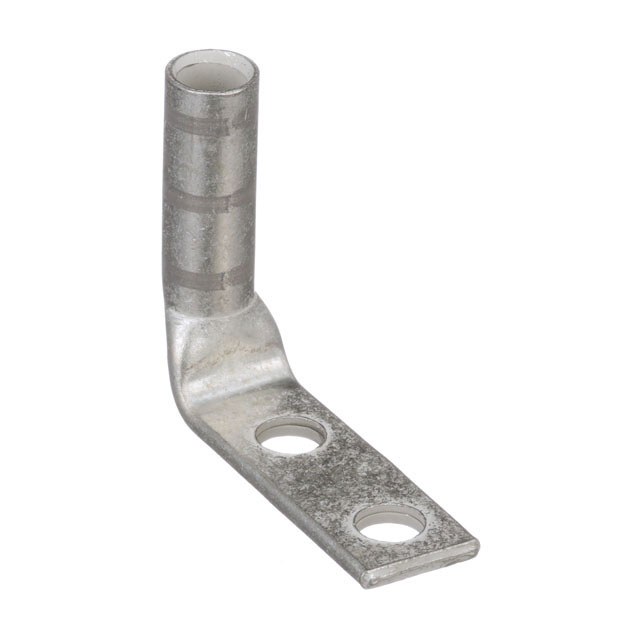

Panduit Corp Pan-Lug™ LCCX4-14BF-L is a non-insulated, rectangular tongue terminal designed for reliable electrical connections. This component features a 4 AWG wire gauge capacity and accepts a 1/4 stud size with a tab thickness of 0.090 inches (2.29mm). The terminal style incorporates two stud holes, and the overall width across outer edges is 0.550 inches (13.97mm). Termination is achieved via crimp to a barrel. Mounting options include free hanging (in-line) and right angle configurations. This component is commonly utilized in industrial power distribution and control systems. Packaged in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
