LCCX4-14AH-L
CONN TERM RECT TONG 4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

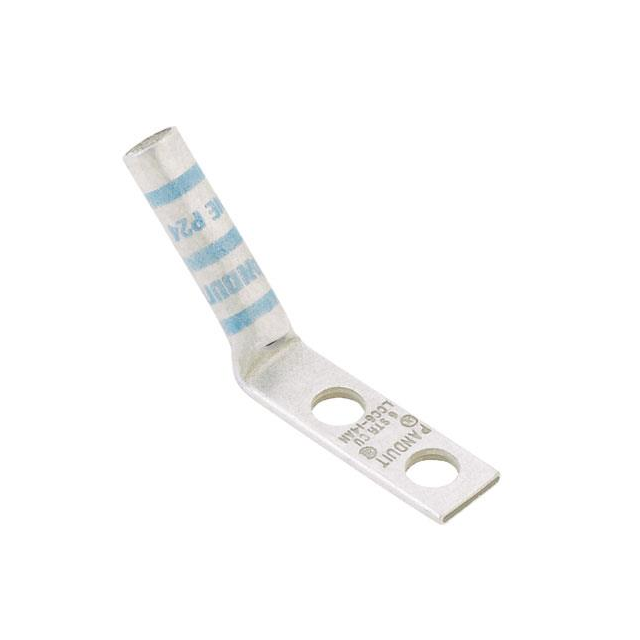

Panduit Corp Pan-Lug™ LCCX4-14AH-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 4 AWG wire gauge and features a 1/4 stud size, with a tab thickness of 0.090 inches (2.29mm). The terminal style incorporates two stud holes, and the termination method is crimp, utilizing a barrel connection. Its outer edges measure 0.550 inches (13.97mm) in width. The mounting type is free hanging (in-line) with an option for a 45° angle. This Panduit Corp terminal is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing sectors for reliable and secure wire termination. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
